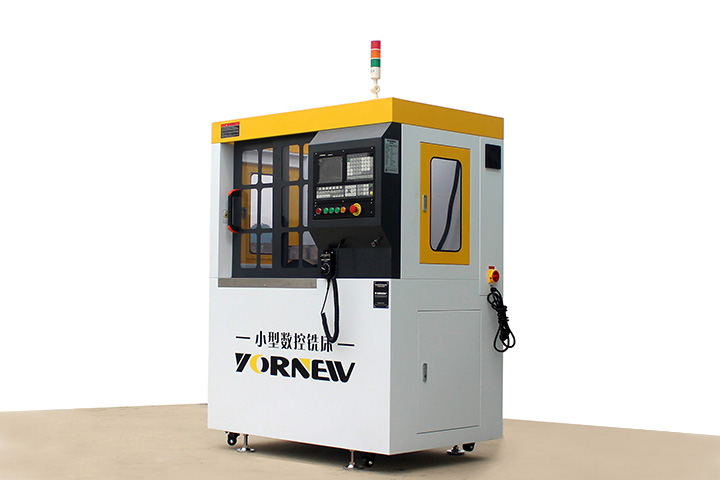

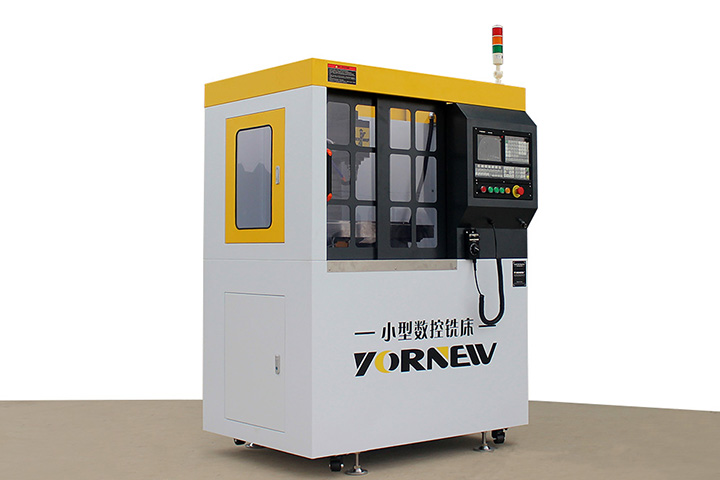

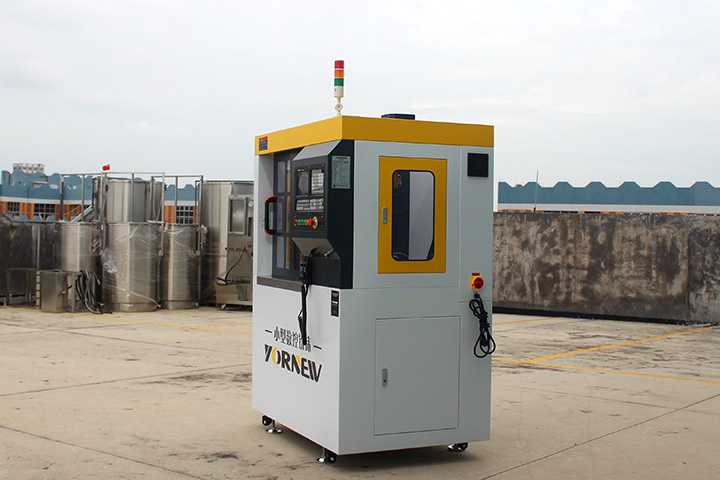

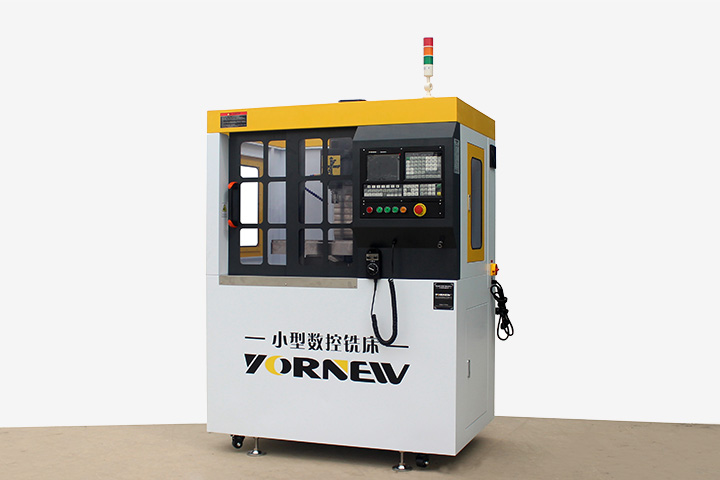

(1). Milling CNC machine tools based entirely on the design and manufacture, reflects the structural integrity of facilitate future design ideas
(2). High performance 4 axis cnc milling controller,KY1000MC CNC Controller ,Optional siemens 808D or GSK980MDc cnc controller.
(3). KY1000MC can control 5 feed axes(including C axis), 2 analog spindles, 1ms high-speed
interpolation, 0.1μm control precision, which can obviously improve the machining efficiency, precision
and surface quality.
(4). X, Z, Y, 4th, 5th ; axis name and axis type of Y, 4th, 5th can be defined,1ms interpolation period, control precision 1μm, 0.1μm,Max. speed 60m/min(up to 24m/min in 0.1μm),Adapting to the servo spindle to realize the spindle continuously positioning, rigid tapping, and
the rigid thread machining,Built-in multi PLC programs, and the PLC program currently running can be selected
Statement macro command programming, macro program call with parameter,Metric/inch programming, automatic toolsetting, automatic chamfer, tool life management
function,Chinese, English display can be selected by parameters,USB interface, U disc file operation, system configuration and software.
(5). The standard spec includes MPG hand wheel.
(6). By MPG handwheel convenient electronic control of each axis of movement.

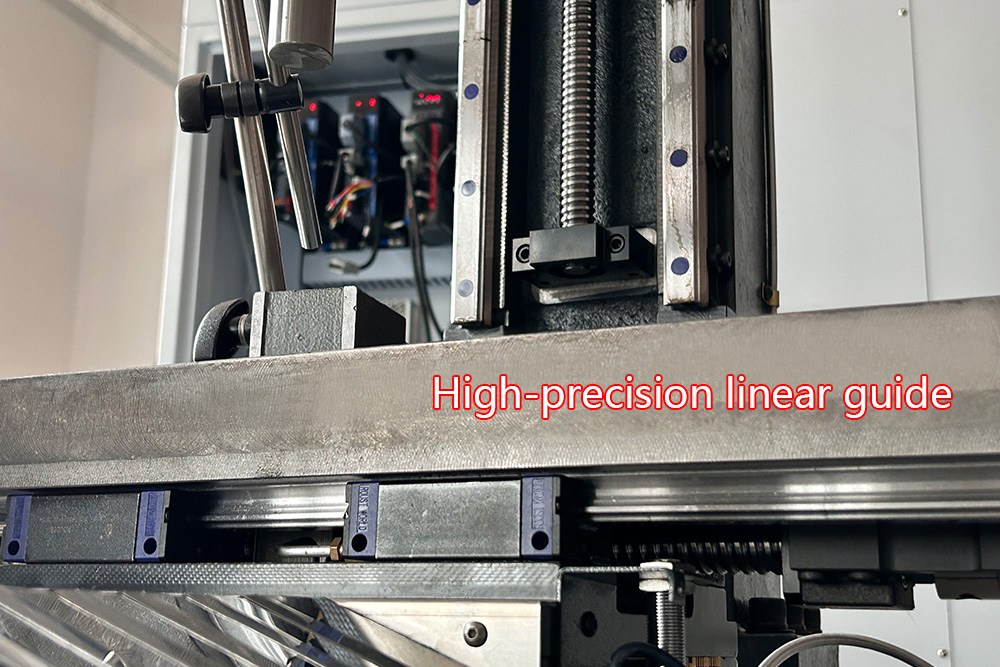

(7). High-precision linear guide,Selection of high -quality casting materials,more compact..

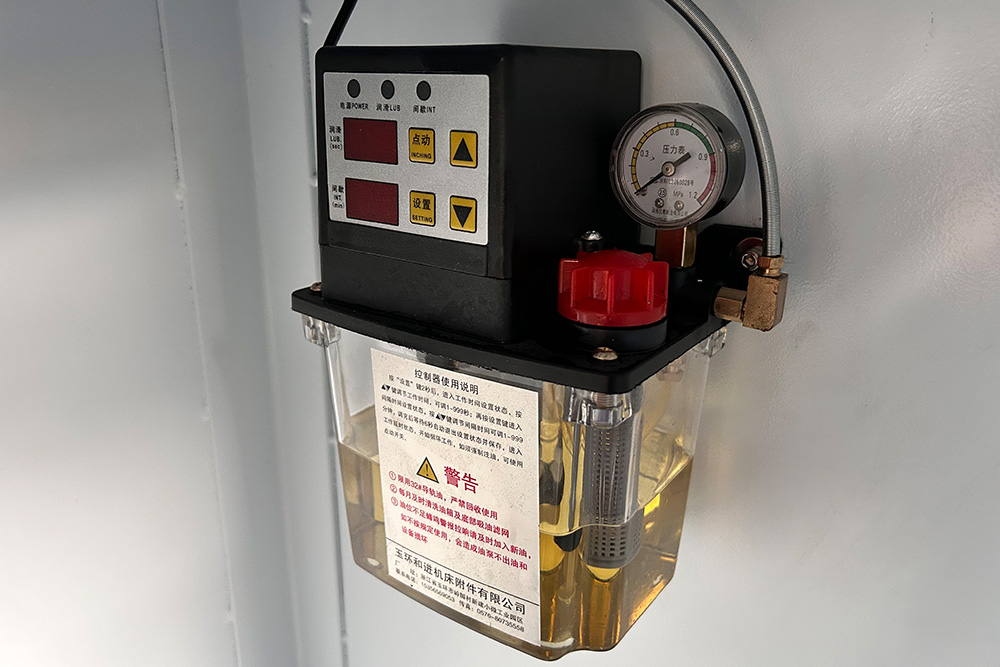

(8). A collection of double-nut ball screw, bearings and couplings with high precision positioning, while adding an automatic oil lubrication system, to protect your machine precision, extended service life.
(9). 220VAC or 110VAC single-phase AC power supply.

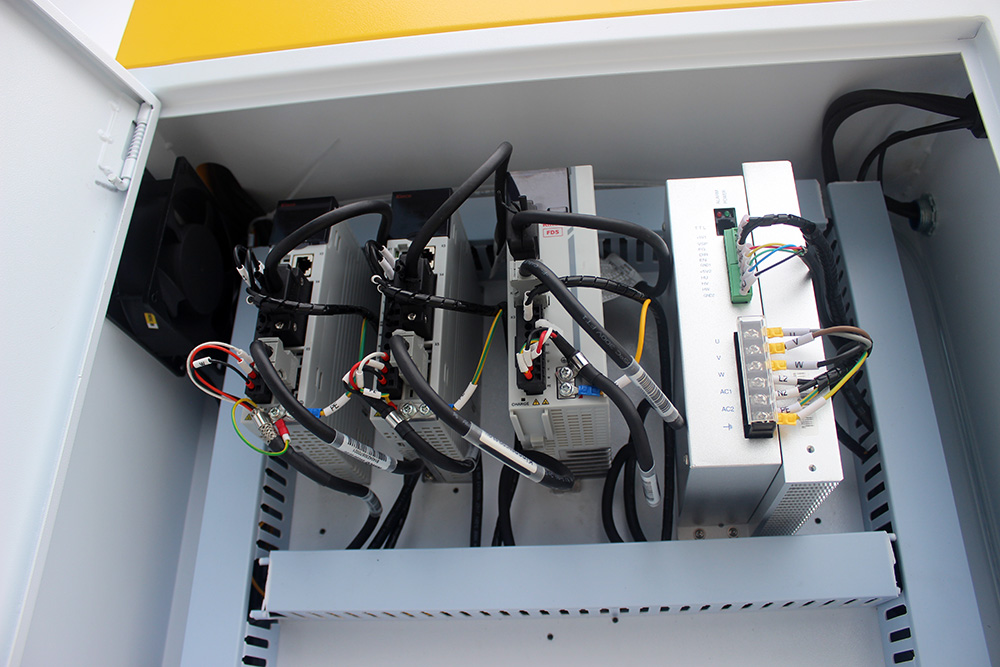

(10). Safety electrical components of high quality and fast plug.

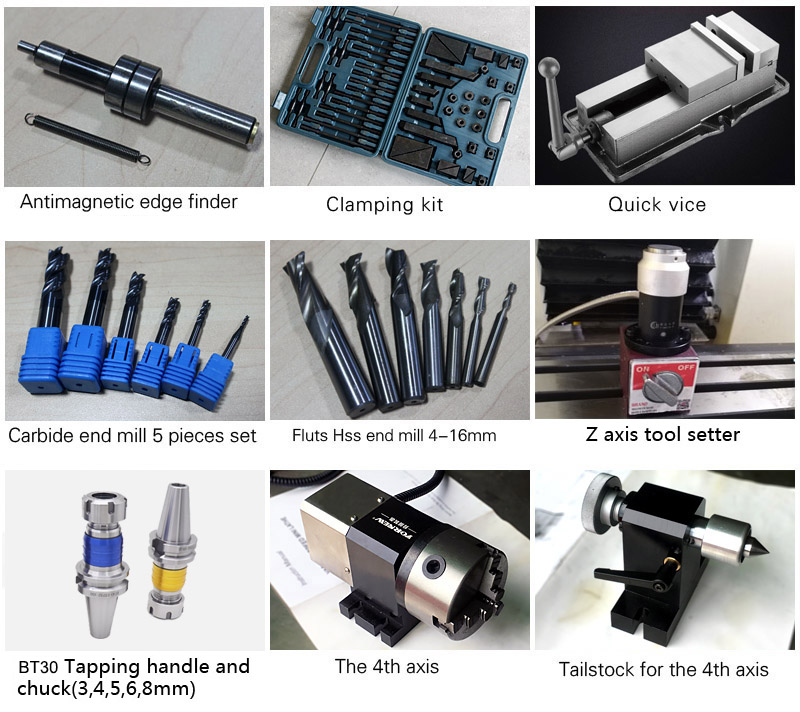

(11). Pre-installed fourth axis fast interface.

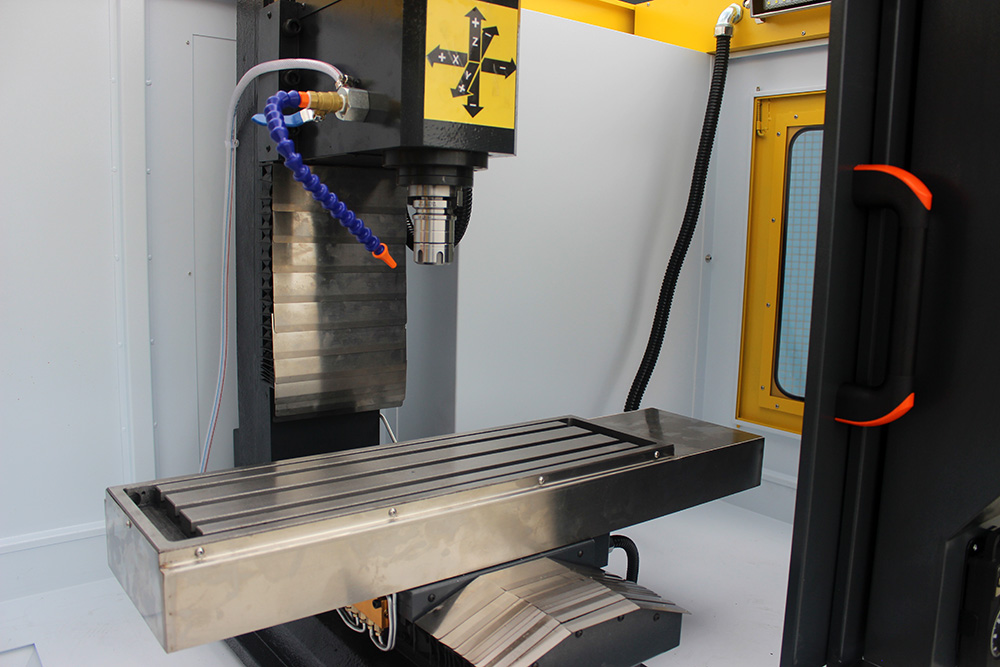

(12). With sink and nozzles.
(13). Applicable industry: technology development, advertising design, art, ocational technical college Education & Training CNC and DIY enthusiasts.
Technical parameters
| |
---|---|
X axis travel | 310mm |
Y axis travel | 180mm |
Z axis travel | 290mm |
A axis Rotate | 360°(optional) |
Table size | 550*180mm |
Spindle taper | BT30 |
Tool DIA. range | 4-16mm |
T slot (amount*width) | 3*12mm |
Positioning accuracy | 0.02mm |
Repeatability accuracy | 0.01mm |
Control system | KY1000MC CNC Controller |
MPG hand wheel | 4 axis |
Spindle motor | 1.5KW(2.2KW optional) |
Spindle speed | 100-3500r/min(24000r/min optional) |
The max moving speed | 8000mm/min |
The max feeding speed | 4000mm/min |
Power of X/Y/Z | Servo motor 750W |
Transmission | ball screw |
Max. load | 40kg |
Table structure | Full cast iron |
Guide rail | High-precision linear guide |
Power | 230/120V |
Weight(NW/GW) | 600/650kg |
Overall dimension | 1360*990*1800mm |
Packing size | 1400*1050*2000mm |
