Compact education CNC lathe, the most space-efficient CNC machine designed for educational settings. This compact, small education CNC lathe is the ideal introduction to CNC machining for students, capable of performing intricate turning and high-precision small part manufacturing.With an industry-standard SINUMERIK 808D control, allowing students to gain hands-on experience with the same technology used in professional settings. With the ability to cut light materials and turning metals, this machine bridges the gap between classroom learning and real-world manufacturing, preparing students for high-wage, high-demand careers in advanced manufacturing.Equip students with practical skills and experience using the same control systems found in the industry,prepare students for the workforce with hands-on experience in modern machining and manufacturing processes.
100mm 4 inch self-centering,optional 4-jaw chuck.Use cast iron spindle box,It has good rigidity and stability, which benefits to the machining precision.Spindle with encoder, capable of turning threads.
This machine is designed with a guide rail lubrication system, for extended machine lifespan.
Our large-capacity circulation cooling water tank, equipped with a filtration system, effectively dissipates heat and removes impurities, ensuring optimal performance and extending the lifespan of your tools . With manual and g-code automatic control.
Equipped with a 4-station automatic tool change for processing more complex parts,optional 8-station automatic tool change.Turning tool specifications is 12*12mm .

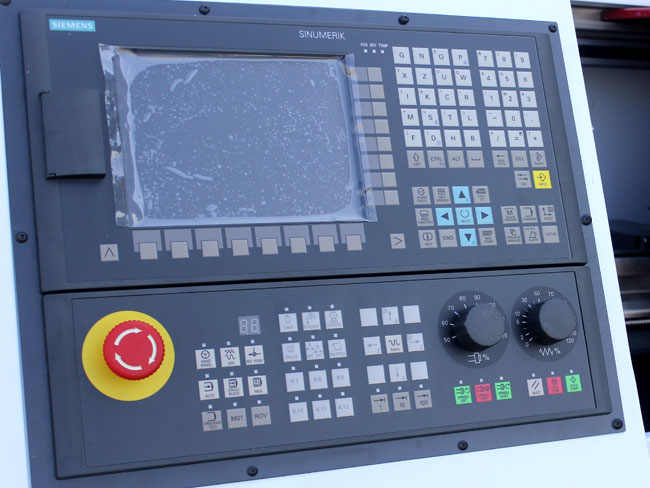

SINUMERIK 808D ADVANCED brings impetus into basic turning and milling machines. CNCs from the global technology leader, teamed-up with a revolutionary operating concept make the SINUMERIK 808D ADVANCED the perfect entry into the world of CNC.
Machine tool bod selection of high-quality casting materials,with lathe tailstock,semi-automatic lubricSation system,protect the rail life and ball screws for unmatched precision.
Technical parameters |
||
Description |
Standard |
Optional |
Positioning accuracy: |
0.02mm |
|
Repeatability accuracy |
0.03mm |
|
Control system |
SINUMERIK 808D |
FANUC Series Oi-TF Plus |
Automatic tool change system(ATC) |
4 Tools |
8 tools |
Turning diameter over bed(max) |
210mm |
|
Chuck diameter |
100mm |
|
Spindle speed |
300-1800r/min |
|
Spindle through-hole |
26mm |
|
Spindle mount |
MT4 |
|
Spindle motor power |
1100W |
|
Work-piece cooling |
Water Cooled /29L |
|
X axis travel |
90mm |
|
Z axis travel |
300mm |
|
X/Z axis motor |
400W Servo Motor |
|
The max moving speed |
8000mm/min |
|
The max feeding speed |
4000mm/min |
|
Full cast iron |
Full cast iron |
|
MPG handwheel |
4 axis |
|
Tool dimension |
12×12mm |
|
Tailstock taper |
MT2 |
|
Tailstock sleeve diameter |
20mm |
|
Travel of tailstock |
25mm |
|
Power |
380VAC (3 Phase) |
|
Weight(NW/GW) |
280/320KG |
|

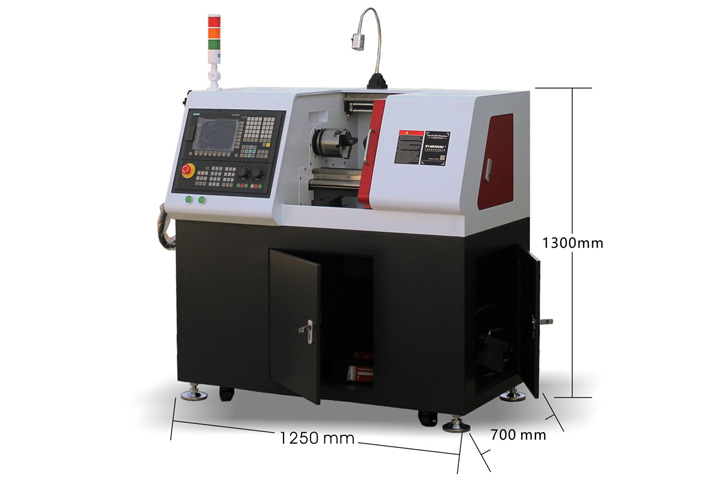

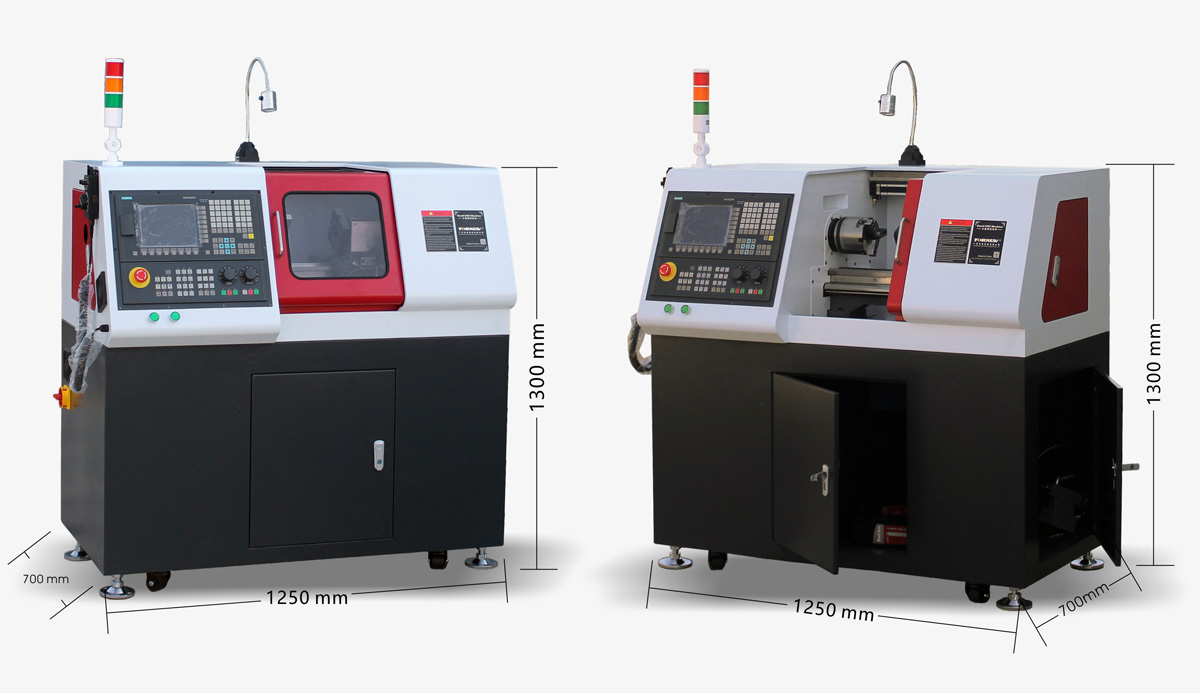

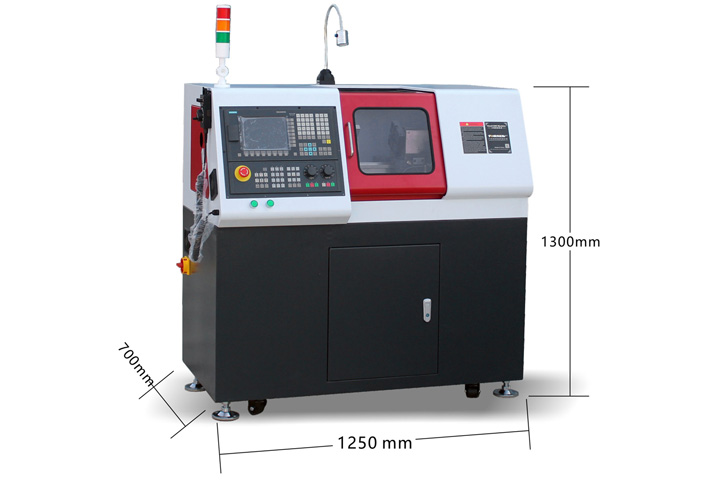

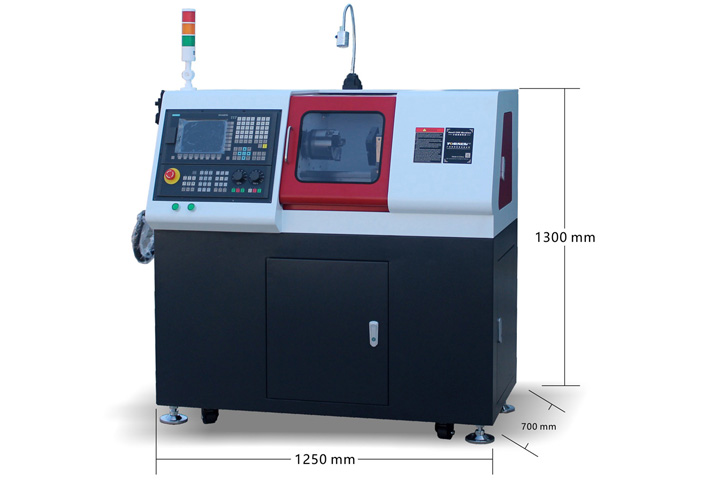

Overall dimension |
1250×700×1300mm |
|
Packing size |
1400×860×1500mm |
