Compact education CNC lathe, the most space-efficient CNC machine designed for educational settings. This compact, small education CNC lathe is the ideal introduction to CNC machining for students, capable of performing intricate turning and high-precision small part manufacturing.With an industry-standard FANUC Series Oi-TF Plus control, allowing students to gain hands-on experience with the same technology used in professional settings. With the ability to cut light materials and turning metals, this machine bridges the gap between classroom learning and real-world manufacturing, preparing students for high-wage, high-demand careers in advanced manufacturing.Equip students with practical skills and experience using the same control systems found in the industry,prepare students for the workforce with hands-on experience in modern machining and manufacturing processes.
100mm 4 inch self-centering,optional 4-jaw chuck.Use cast iron spindle box,It has good rigidity and stability, which benefits to the machining precision.Spindle with encoder, capable of turning threads.
This machine is designed with a guide rail lubrication system, for extended machine lifespan.
Our large-capacity circulation cooling water tank, equipped with a filtration system, effectively dissipates heat and removes impurities, ensuring optimal performance and extending the lifespan of your tools . With manual and g-code automatic control.
Equipped with a 4-station automatic tool change for processing more complex parts,optional 8-station automatic tool change.Turning tool specifications is 12*12mm .

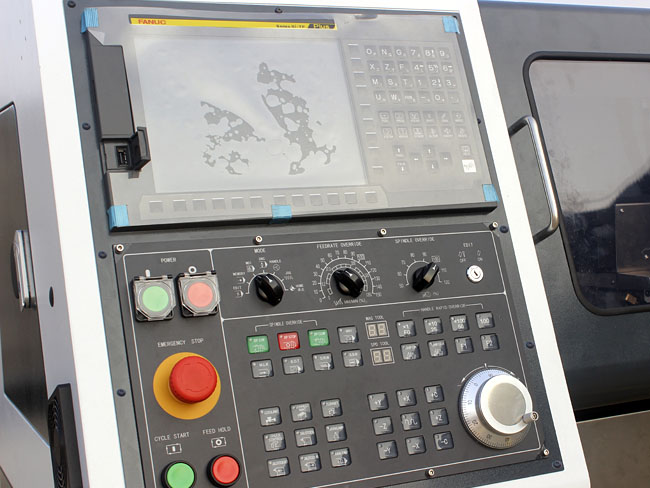

It is a fundamental CNC system tailored for turning applications. This basic yet capable system offers customisable functions and screens, perfectly suited for fine surface machining and reducing cycle times.
Machine tool bod selection of high-quality casting materials,with lathe tailstock,semi-automatic lubricSation system,protect the rail life and ball screws for unmatched precision.
Technical parameters |
||
Description |
Standard |
Optional |
Positioning accuracy: |
0.02mm |
|
Repeatability accuracy |
0.03mm |
|
Control system |
FANUC Series Oi-TF Plus |
SINUMERIK 808D |
Automatic tool change system(ATC) |
4 Tools |
8 tools |
Turning diameter over bed(max) |
210mm |
|
Chuck diameter |
100mm |
|
Spindle speed |
300-1800r/min |
|
Spindle through-hole |
26mm |
|
Spindle mount |
MT4 |
|
Spindle motor power |
1100W |
|
Work-piece cooling |
Water Cooled /29L |
|
X axis travel |
90mm |
|
Z axis travel |
300mm |
|
X/Z axis motor |
400W Servo Motor |
|
The max moving speed |
8000mm/min |
|
The max feeding speed |
4000mm/min |
|
Full cast iron |
Full cast iron |
|
MPG handwheel |
4 axis |
|
Tool dimension |
12×12mm |
|
Tailstock taper |
MT2 |
|
Tailstock sleeve diameter |
20mm |
|
Travel of tailstock |
25mm |
|
Power |
380VAC (3 Phase) |
|
Weight(NW/GW) |
280/320KG |
|

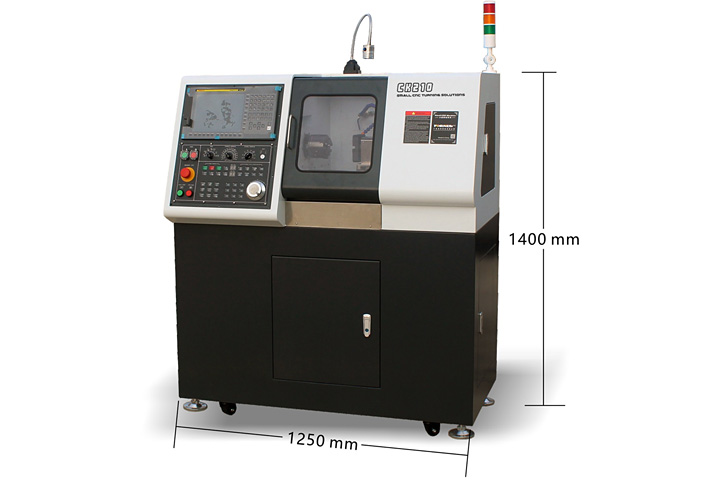

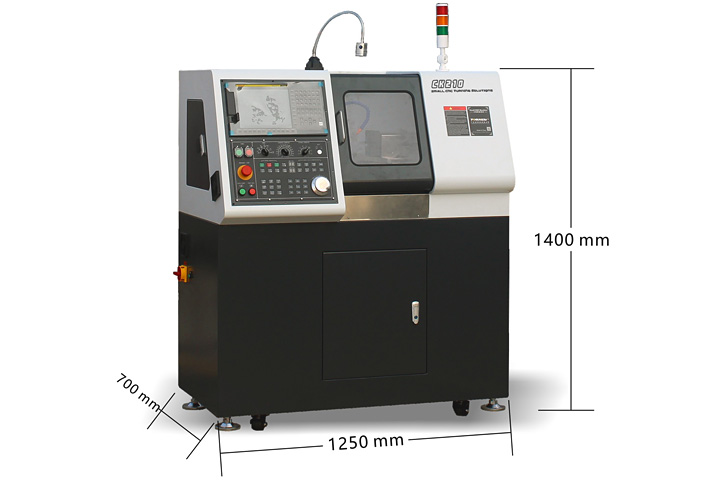

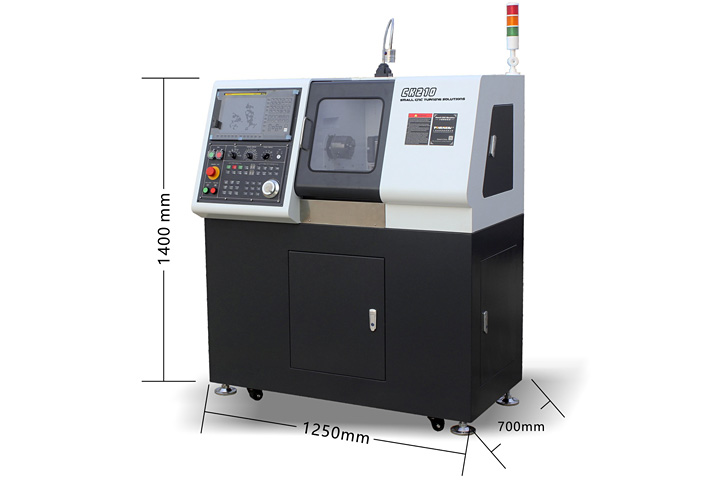

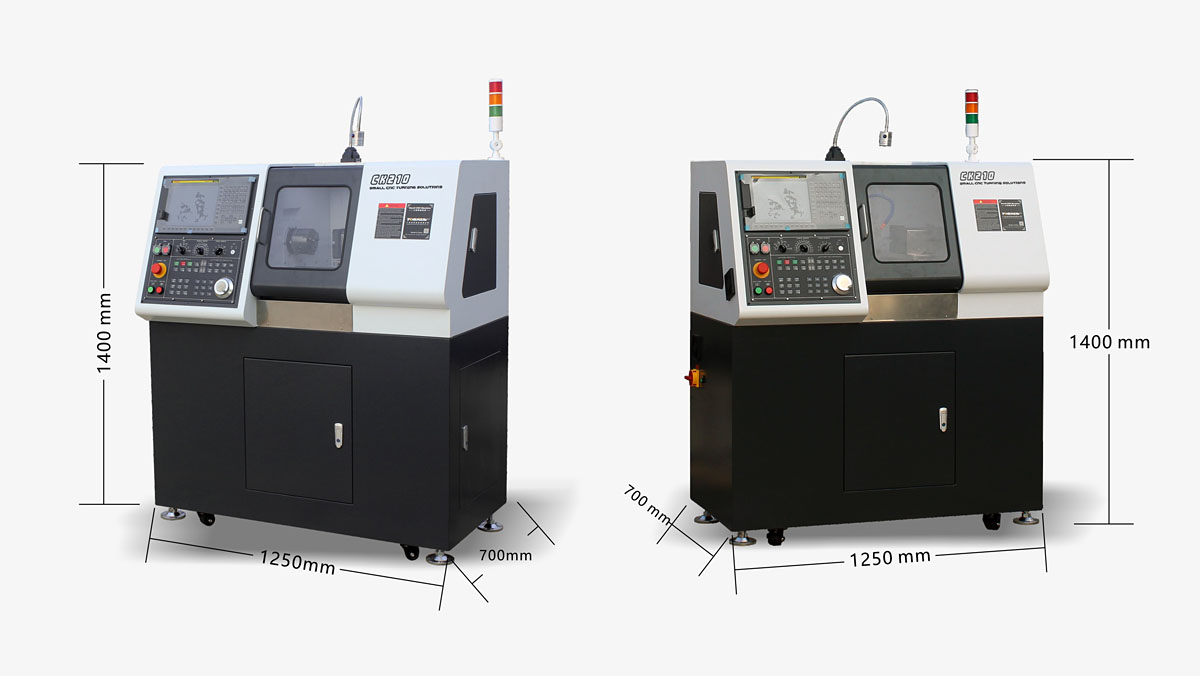

Overall dimension |
1250×700×1400mm |
|
Packing size |
1400×860×1600mm |
